C-Square Gutter
SKU: CSGSAG
About this product
Designed specifically for verandah and carport applications, C or ‘Commercial’ Square Gutter is commonly used in commercial applications where a modern, attractive gutter is required. A unique fold at the back of the gutter enables it to be easily secured to roof sheeting.Image gallery
Attractive Square Front Guttering
Designed to deliver a neat appearance to your roofing project.

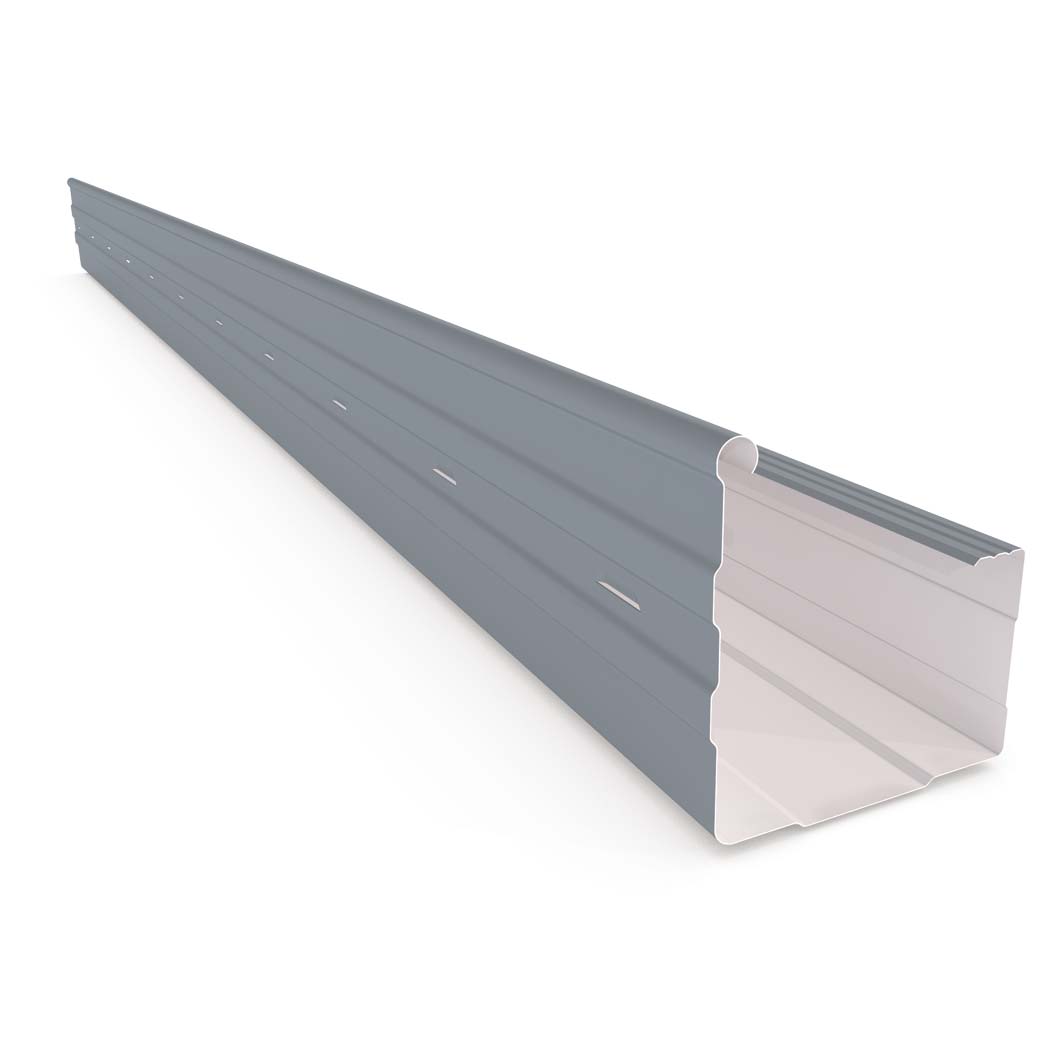

Stratco C-Square Gutter features an attractive square front, manufactured with slots in the face of the gutter to enable excess water to overflow. C-Square Gutter also features a unique fold at the back which enables the gutter to be easily secured to roof sheeting or the standard 150 CPF or 'Carport Fascia Truss'.
C-Square Gutter is available in a range of attractive pre-painted steel colours or in un-painted zinc/al. Stratco stocks a complete range of gutter accessories to finish your project including C-Square stop ends, mitres and concealed brackets.
Available Colours
Brochures & Installation Guides
Gutter Accessories
Internal or External Mitre
Gutter mitres manufactured from the same gutter profile can be supplied, ready to use on site. These mitres provide a continuous line around the corners and can be made to any angle required to suit the design of the building.
Stop End
Individual stop ends can be supplied in left and right hand ready for on site installation.
GP Bracket
GP brackets are fixed at 1.2 metre intervals and are generally used when replacing existing gutters.

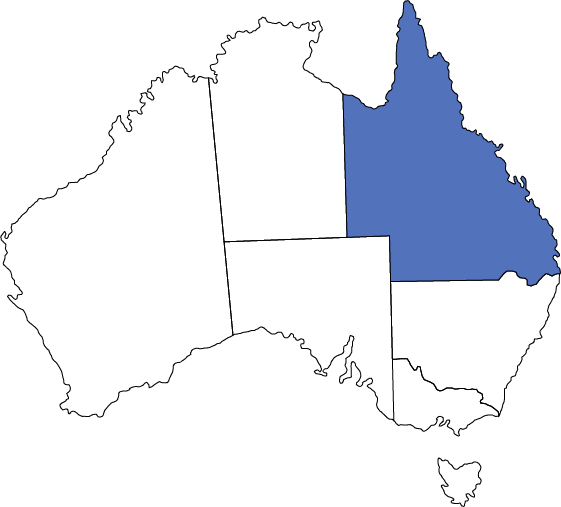

Note: Availability is state specific, please check prior to ordering.
Specifications
| Specifications | ||||
| Tensile (MPa) | BMT (mm) | Type | Capacity (mm²) | Total Cross Section Area (mm²) |
|---|---|---|---|---|
| G550 | 0.42 | Slotted | 5974 | 7155 |
Note: Calculation of the effective cross sectional area ‘Capacity’ is based on the requirements of section 3.8 AS/NZS 2179.1:1994.

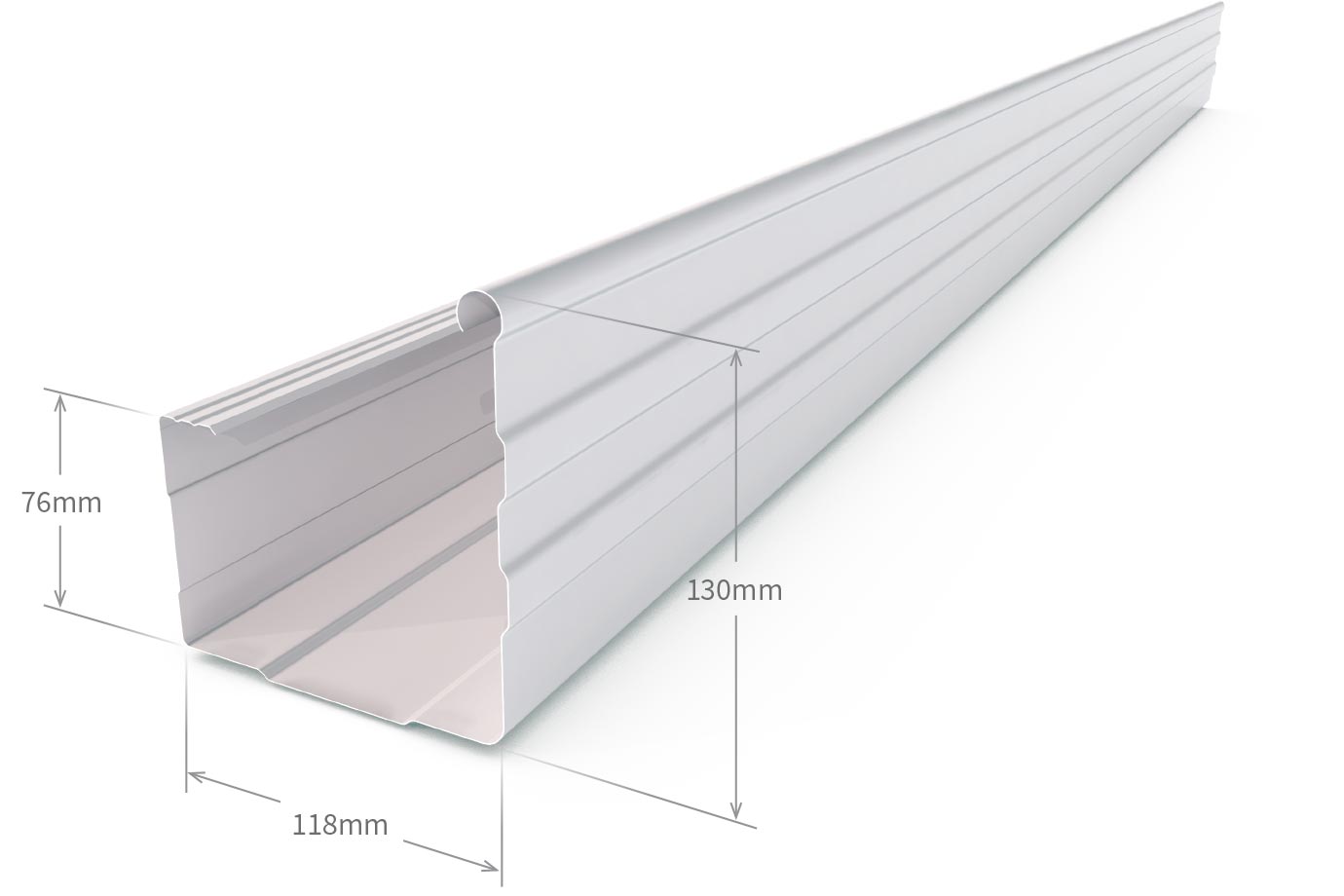

Dimensions
|
Dimensions
|
|
| A | 76mm |
|---|---|
| B | 118mm |
| C | 130mm |
